Graphs and traversals

Relations such as between parents and children can be modeled as graph. In ArangoDB, two documents (a parent and a child character document) can be linked by an edge document. Edge documents are stored in edge collections and have two additional attributes: _from and _to. They reference any two documents by their document IDs (_id).

ChildOf relations

Our characters have the following relations between parents and children (first names only for a better overview):

    Robb -> Ned
   Sansa -> Ned
    Arya -> Ned
    Bran -> Ned
     Jon -> Ned
    Robb -> Catelyn
   Sansa -> Catelyn
    Arya -> Catelyn
    Bran -> Catelyn
   Jaime -> Tywin
  Cersei -> Tywin
  Tyrion -> Tywin
 Joffrey -> Jaime
 Joffrey -> Cersei

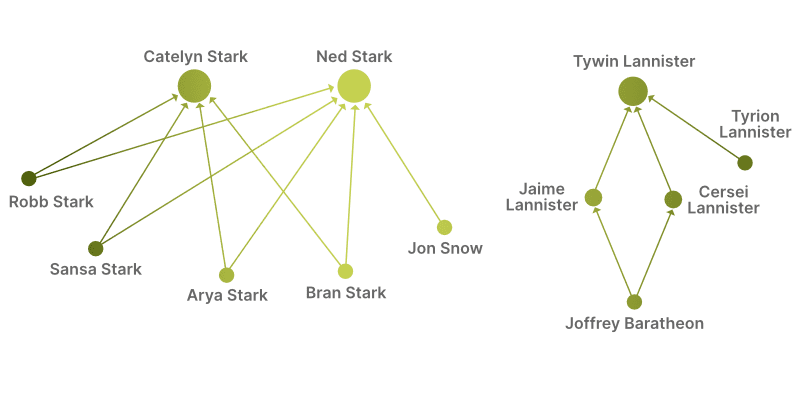

Visualized as a graph:

Creating the edges

To create the required edge documents to store these relations in the database, you can run a query that combines joining and filtering to match up the right character documents, then use their _id attribute to insert an edge into an edge collection called ChildOf.

1. Click Collections in the main navigation.
2. Click the Add collection button.
3. Enter ChildOf as the Name.
4. Change the collection type to Edge.

Then run the following query:

LET relations = [
  { "parent": "ned", "child": "robb" },
  { "parent": "ned", "child": "sansa" },
  { "parent": "ned", "child": "arya" },
  { "parent": "ned", "child": "bran" },
  { "parent": "catelyn", "child": "robb" },
  { "parent": "catelyn", "child": "sansa" },
  { "parent": "catelyn", "child": "arya" },
  { "parent": "catelyn", "child": "bran" },
  { "parent": "ned", "child": "jon" },
  { "parent": "tywin", "child": "jaime" },
  { "parent": "tywin", "child": "cersei" },
  { "parent": "tywin", "child": "tyrion" },
  { "parent": "cersei", "child": "joffrey" },
  { "parent": "jaime", "child": "joffrey" }
]

FOR rel in relations
  INSERT {
    _from: CONCAT("Characters/", rel.child),
    _to: CONCAT("Characters/", rel.parent)
  } INTO ChildOf
  RETURN NEW

Breakdown of the query:

• Assign the relations in form of an array of objects with a parent and a child attribute each, both with the document key of the character.
• For each element in this array, assign a relation to a variable rel and execute the subsequent instructions.
  • Insert a new edge document into the ChildOf collection, with the edge going from child to parent. The _from and _to edge attributes require document IDs like collection/key. Therefore, the document keys derived from the character names are prefixed with Characters/ to obtain the IDs. No other attributes are set for the edge in this example.
  • Return the new edge document (optional)

Traverse to the parents

Now that edges link character documents (vertices), it is a graph you can query to find out who the parents are of another character – or in graph terms, you want to start at a vertex and follow the edges to other vertices in an AQL graph traversal:

// Declare collection of start vertex (cluster only)
WITH Characters

FOR v IN 1..1 OUTBOUND "Characters/bran" ChildOf
  RETURN v.name

This FOR loop doesn’t iterate over a collection or an array, it walks the graph and iterates over the connected vertices it finds, with the vertex document assigned to a variable (here: v). It can also emit the edges it walked as well as the full path from start to end to another two variables.

In above query, the traversal is restricted to a minimum and maximum traversal depth of 1 (how many steps to take from the start vertex), and to only follow edges in OUTBOUND direction. Our edges point from child to parent, and the parent is one step away from the child, thus it gives you the parents of the child you start at. "Characters/bran" is that start vertex.

To determine the ID of e.g. the Joffrey Baratheon document, you may iterate over the collection of characters, filter by the name or other criteria, and return the _id attribute:

FOR c IN Characters
  FILTER c.surname == "Baratheon" AND c.age != null
  RETURN c._id

[ "Characters/joffrey" ]

You may also combine this query with the traversal directly, to easily change the start vertex by adjusting the filter condition(s):

FOR c IN Characters
  FILTER c.surname == "Baratheon" AND c.age != null
  FOR v IN 1..1 OUTBOUND c ChildOf
    RETURN v.name

The start vertex is followed by ChildOf, which is our edge collection. The example query returns only the name of each parent to keep the result short:

[
  "Jaime",
  "Cersei"
]

For Robb, Sansa, Arya, and Bran as the starting point, the result is Catelyn and Ned, and for Jon Snow it is only Ned.

Be mindful of the FILTER criteria. If more than one character fulfills the conditions, there will be multiple traversals. And with the query as it is, all of the parent names would be combined into a single list:

FOR c IN Characters
  FILTER c.surname == "Lannister"
  FOR v IN 1..1 OUTBOUND c ChildOf
    RETURN v.name

[
  "Tywin",
  "Tywin",
  "Tywin"
]

You can achieve a more useful output by returning the result of each traversal as a separate list and set the minimum traversal depth to 0 to include the start vertex. This lets you see the child’s name as the first element of each array, followed by the parent name(s) if this information is available.

FOR c IN Characters
  FILTER c.surname == "Lannister"
  RETURN (FOR v IN 0..1 OUTBOUND c ChildOf
    RETURN v.name)

[
  [
    "Jaime",
    "Tywin"
  ],
  [
    "Cersei",
    "Tywin"
  ],
  [
    "Tyrion",
    "Tywin"
  ],
  [
    "Tywin"
  ]
]

Traverse to the children

You can also walk from a parent in reverse edge direction (INBOUND that is) to the children:

FOR c IN Characters
  FILTER c.name == "Ned"
  FOR v IN 1..1 INBOUND c ChildOf
    RETURN v.name

[
  "Robb",
  "Sansa",
  "Jon",
  "Arya",
  "Bran"
]

Traverse to the grandchildren

For the Lannister family, there are relations that span from parent to grandchild. Change the traversal depth to return grandchildren, which means to go exactly two steps:

FOR c IN Characters
  FILTER c.name == "Tywin"
  FOR v IN 2..2 INBOUND c ChildOf
    RETURN v.name

[
  "Joffrey",
  "Joffrey"
]

It might be a bit unexpected, that Joffrey is returned twice. However, if you look at the graph visualization, you can see that multiple paths lead from Joffrey (bottom right) to Tywin:

Tywin <- Jaime  <- Joffrey
Tywin <- Cersei <- Joffrey

As a quick fix, change the last line of the query to RETURN DISTINCT v.name to return each value only once. However, there are traversal options including one to suppress duplicate vertices early on for the entire traversal (which requires breadth-first search):

FOR c IN Characters
  FILTER c.name == "Tywin"
  FOR v IN 2..2 INBOUND c ChildOf OPTIONS { uniqueVertices: "global", order: "bfs" }
    RETURN v.name

[
  "Joffrey"
]

Traverse with variable depth

To return the parents and grandparents of Joffrey, you can walk edges in OUTBOUND direction and adjust the traversal depth to go at least 1 step, and 2 at most:

FOR c IN Characters
  FILTER c.name == "Joffrey"
  FOR v IN 1..2 OUTBOUND c ChildOf
    RETURN DISTINCT v.name

[
  "Cersei",
  "Tywin",
  "Jaime"
]

With deeper family trees, it would only be a matter of changing the depth values to query for great-grandchildren and similar relations.
